Study Plan drawing list
01 General arrangement
02 Outboard profile & deck plan
03 Fwd joiner sections
04 Aft joiner sections
05 Water jet installation (design detail example)

             38ft Custom Dayboat

            PRINCIPAL DIMENSIONS

  Length on deck            11.200 MTRS ~ 37' 0"
  LOA. (including platform) 12.100 MTRS ~ 39' 7"
  BEAM MAX.                 3.200 MTRS  ~ 10' 6"
  BEAM WL                   2.940 MTRS  ~  9' 8"
  PRISMATIC COEF.           .74
  RATE OF IMMERSION         KG CM  = 245KG
  CANOE BODY DRAFT.         0.495 MTR  ~  1' 10"
  DEAD RISE AT TRANSOM      15 deg.
  DEADRISE AMIDSHIPS        20 deg.
  DEADRISE  FWD             56 deg.

  RM @ 1 deg.                KG M =  225 KG

  DRY WEIGHT                4,146 KG ~ 9140 LB

  HEAVY SHIP CONDITION      5,771 KG ~12722 LB

  ESTIMATED ACHIEVABLE SPEEDS AT ESTIMATED
  WEIGHT

  1 * 350HP- 400HP WATER JET OR SIMILAR
  UNIT 23 + KNOTS (realistic estimation)
  IF CONSTRUCTION WEIGHT IS MAINTAINED.

  FUEL CAPACITY        2 * 350 LITRES
  WATER CAPACITY          2 * 150 LITRES

         ACCOMMODATIONS

  #  1 * DOUBLE BERTHS
  # LARGE CAPACITY DOMESTIC & PERSONAL
     STOWAGE AREAS
  # HEAD WITH TOILET & SHOWER
  # FULLY FITTED GALLEY - STOVE -
     FRIDGE - SINK
     COPIOUS FOOD & UTENSILS STOWAGE
  # HEAD ROOM FWD ~ 1.925 MTR  ~  6'  3"
    HEAD ROOMWHEEL HOUSE ~ 2.140 MTR ~ 7' 0"

              CONSTRUCTION MEDIUM :

  EPOXY - GLASS - FOAM CORED -  COMPOSITES

Construction for this design is from epoxy resin system, stitched glass, foam cored composites for both shells and internals. Full size plots are supplied for both hull and deck shell building frames. 2 sets of drawings are supplied with a design purchase, These are in the form of computer generated scaled cad drawings plotted on B1 size media.

Construction drawing list
01 Hull lines
02 General arrangement
03 Outboard profile & deck plan
04 Structural layout
05 Construction details
06 Engine details
07 Joiner sections
08 Scantlings
09 1:1 Hull Plots hardcopy
10 1:1 Deck Plots hardcopy
11 1:1 Hull Plots
12 1:1 Deck Plots


Day boat structures.

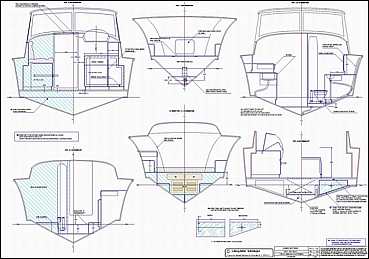

Day boat joiner sections



We can give you a competitive estimate to build this design in our own yard, onsite here in Australia using New Zealand and Australian craftsmen. Construction in modern epoxy composites with timber finishes to what ever level desired. For further information please email or call.

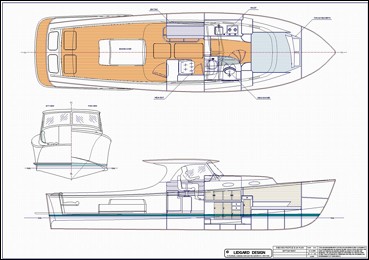

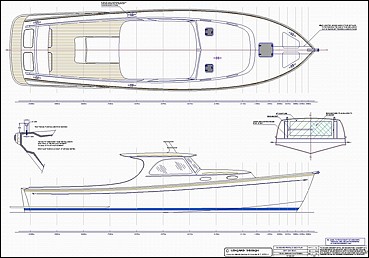

Day boat outboard profile and deck plan.

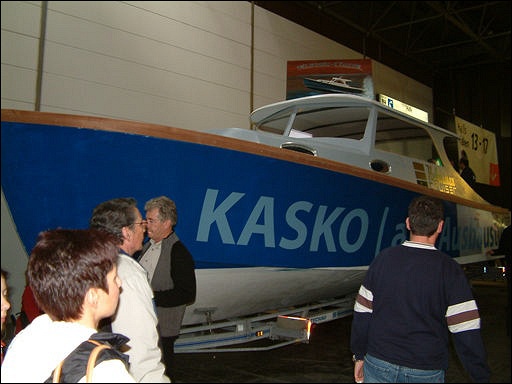

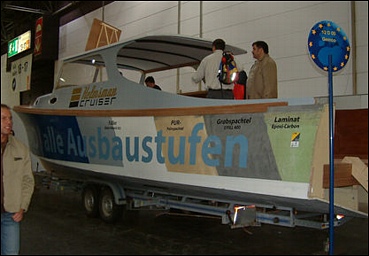

Professional build Duseldorf Germany.
To view larger image ..... Click here.

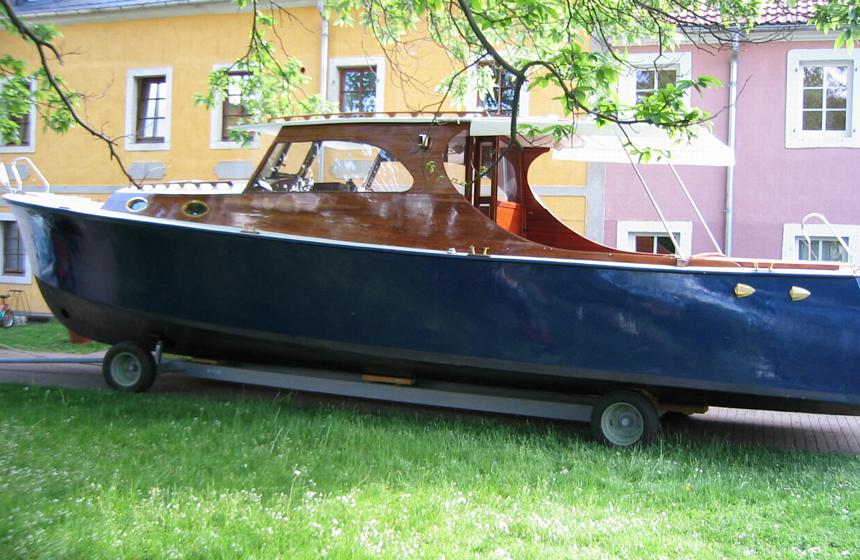

Private build Dresden Northern Germany.
This was owner built and appears a nice job was made of it.
To view larger image .... Click here

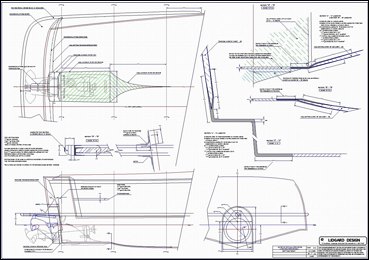

Sample of design detail (engine / drive installation)

Dayboat Inboard Profile and General arrangement.
