To view a launching image gallery of this yacht ........ Click here.

To view build quality image gallery of this yacht ........ Click here.



If you wish to order a set of study plans for this design.
Australian $35.00 per set.

Click PayPal buy now button


The images shown on this page are those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.



Lidgard Yacht Design International 8mtr Class Yacht.

Principal Dimensions

LOA: 14.575m
Beam: 2.525m
Displacement: 8,200 kgs
Ballast: 5,000 kgs
Sail Areas
Main : 60m2
Fore Triangle: 34m2




Construction drawing list Drawings supplied with a stock
plan purchase. 2 x copies of each drawing supplied


01_ hull lines
02_ sailplan.(a)
02_ sailplan.(b)
03_ structures
04_ structural layout plan
05_ inboard profile & general arrangement plan
06_ outboard profile & deck plan
07 _hull frames hard copy
08_ deck frames hard copy
10_ section station 0
11_ section station 1
12_ section station 4
13_ section station 8
14_ stn.5 & keel
16_ section station 55% lwl
17_ section frame 13_15
18_ section station 9
19_ rudder construction details
20_ rudder 1~1 (full scale files)
21_ section station l2 & transom
22_ cockpit layout details
23_ chain plate details
24_ International 8 rule scantling calcs






The plan images shown below are those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.

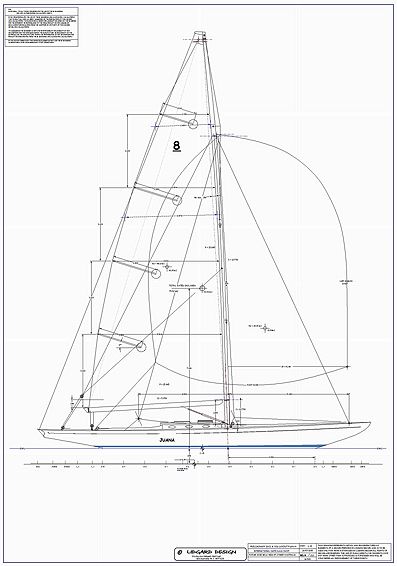

Sail Plan. International 8 mtr class classic yacht

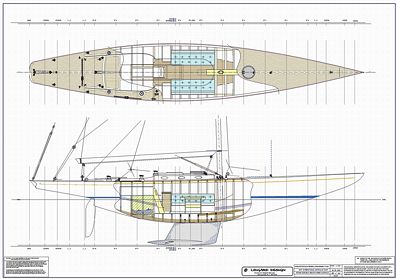

General arrangement plan.

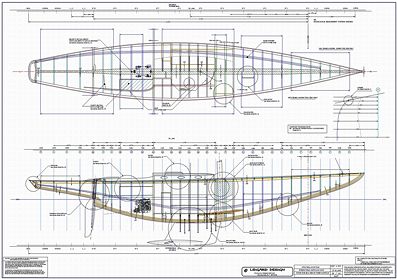

Structural layout plan.

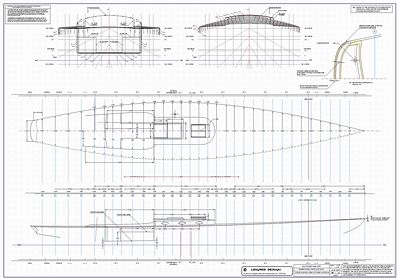

Deck frames.

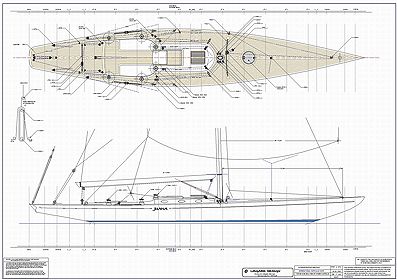

Outboard profile and Deck plan

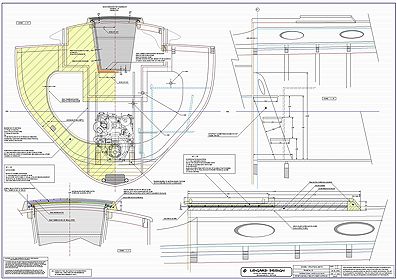

Section about Companionway Bulkhead

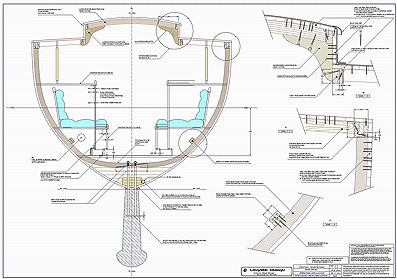

Section at about 55% LWL
