The cad images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.



If you wish to order a set of study plans for the 52 ft Power Catamaran design.
Australian $30.00 per set.

Click pay now button below.


Study Plan drawing list
01 General arrangement
02 Outboard profile
03 Fwd joiner sections
04 Midship joiner sections
05 Flybridge layouts



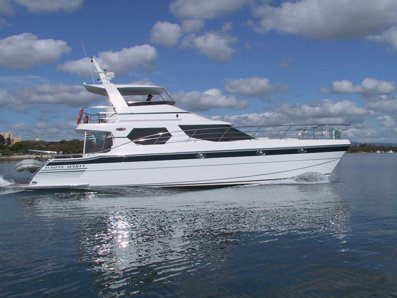

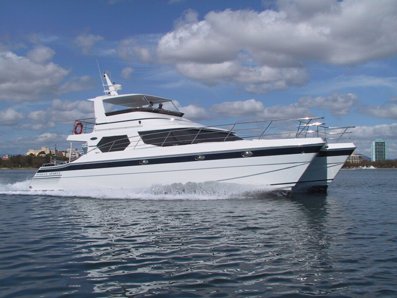

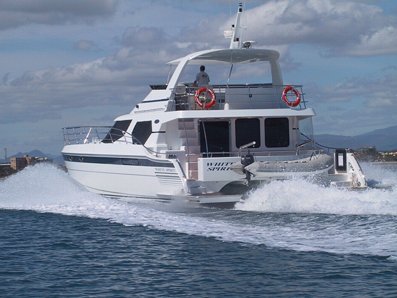

16.150 mtr Displacement type Power Catamaran
Principal Dimensions


Displacement At Dwl.......... 22,500 Kg
Loa ..............................16.150 Mtrs
Lod (Wing Deck L.)............13.525 Mtrs
Beam Max ...........................6.775 Mtrs
Draft..................................1.155 Mtrs
Wing Deck Clearance............0.900 Mtrs

This Design is a Displacement type requiring a range of Horse Power from a minimum of 2 * 270 Hp to 2 * 370 Hp to achieve up to 24 knots (Efficiency speed/ range performance will vary with load, torque ratings and prop Specs)


Custom One Off construction for this design is from epoxy resin system, stitched glass, foam cored composites for both shells and internals. Full size cut files are supplied for both hull and deck shell building frames. 2 sets of drawings are supplied with a design purchase, These are in the form of computer generated scaled cad drawings plotted on B1 size media.



Construction drawing list

01 deck lines
03 Structural Layout Plan
04 Structural Profile Plan
05 Joiner Sections (A)
05 Joiner Sections (B)
07 Interior Details
08 Consstruction details (A)
08 Consstruction details (B)
09 Hull lines
10 Main Aft Beam Structures
11 Steering (A)
11 Steering (B)
12 Flying Bridge Details
13 targa (B)
13 targa (A)
14 Companionway Bulkhead
15 Main Saloon bulkhead
16 Engine room details
17 Window details
18 Developed panels
19 Drive train
20 Tunnel curvature
21 Survey join details








Back to Study plans page

Back to Multi Hull Power Boats page

Click here to send us an email

LYD directory

Home

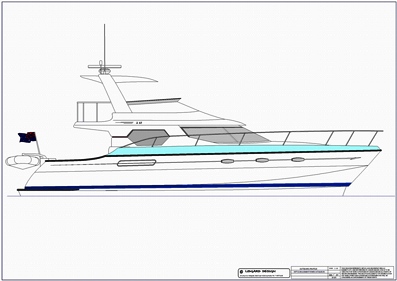

Outboard profile


Inboard Profile and General arrangement

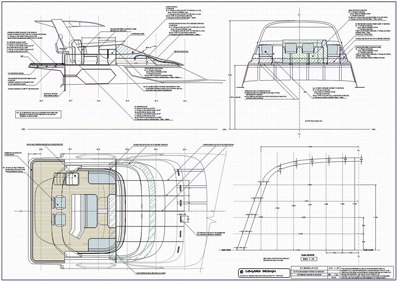

Flybridge layout

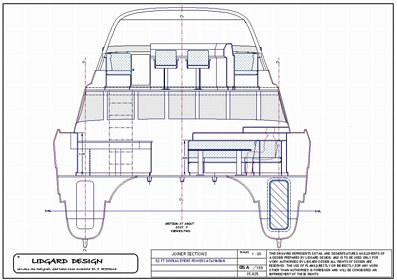

Structural section.

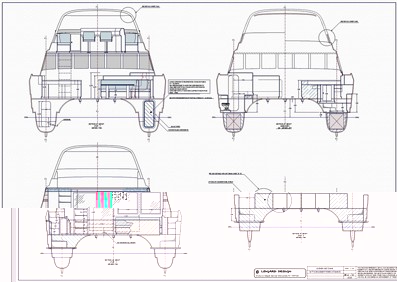

Joiner Sections
