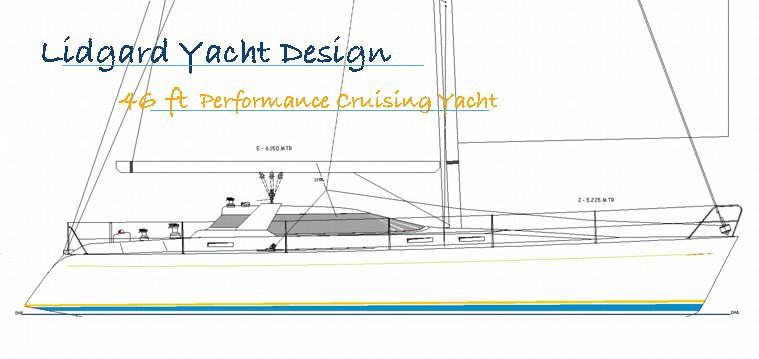

Lidgard Yacht Design 46 ft Perfomance Cruising Yacht
46 ft Cruising Yacht by Lidgard Yacht Design
46 ft Perfomance Cruising Yacht




At Lidgard Yacht Design we can prepare a cruising sail boat design for you to whatever concept you may desire.

Build medium for this design is to be from cedar or similar timber strip planked cored epoxy glass composite or foam cored composites. Internal fit out is from plywood and timber trim. This design is suitable for both home and professional builds. Strip plank being a practical and cost effective build medium for this type of moderate displacement yacht. We will also specify this vessel for a foam cored epoxy composites if one should desire this alternative method.



Send us an email

Back to Stock Plans Page

LYD Contact Details

LYD directory

Home




If you wish to order a set of study plans for this design.
Australian $28.00 per set postage included.

Click pay now button below.




The images opposite are what we mail out as A3 colour prints with a study plan purchase for the 38 ft Schooner design.



Lidgard Yacht Design 46 ft Performance Cruising Yacht.

Principal Dimensions

loa / lod ......................... 14.000 mtr
dwl ......................... 12.420 mtr
beam max ......................... 4.240 mtr
beam wl ......................... 3.375 mtr
draft fixed keel ......................... 2.050mtr

centre board option
draft board down ....................na

main sail ........................61 m2
fore triangle ......................... 41 m2
total sa ........................102 m2

mast above deck .........................19.000 mtr

prismatic coefficient = v2/ (maxa*l) .............. 0.55
sinkage kg per cm = (b1*spacing/3)*10.25 .............. 291 kg
righting moment at 1 degree kgm = ............. 311 kg
displacement ......................... 10000kg
ballast bulb & fin ........................ 4000kg

yanmar ......................... 50hp min

construction hull & deck shells ........................ epoxy - foam cored - glass or cedar composite

internals ........................ composite - plywood - timber - glass



Construction drawing list Drawings supplied with a stock
building plan set purchase. 2 x copies of each drawing supplied


01_46 ga plan
02_46 outboard profile & deck plan
03_46 sail plan
04_46 deck structures
05_46 structural layout plan
06_46 keel
07_46 rudder
08_46 deck scantlings
09_46 hull lines
13_46 mast b'hd
10_46 deck plots hard copy
11_46 joiner sections
12_46 chainplates details
13_46 Mast bulkhead structure


1-1 plots

01_hull frame sections
02_deck sections
03_Rudder
04_Keel
05_Ballast


The images below are what we mail out as A3 colour prints with a PayPal study plan purchase for the 46 ft Cruising Yacht design.

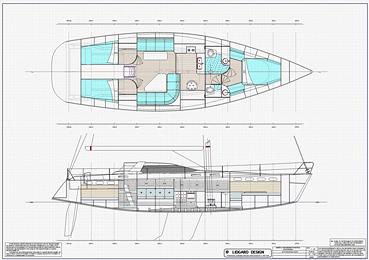

General Arrangement Plan and Inboard Profile

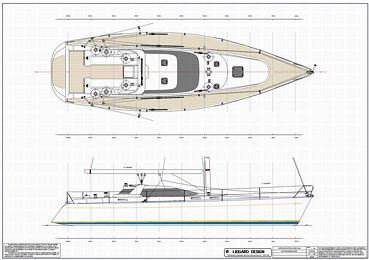

Outboard Profile and Deck Plan

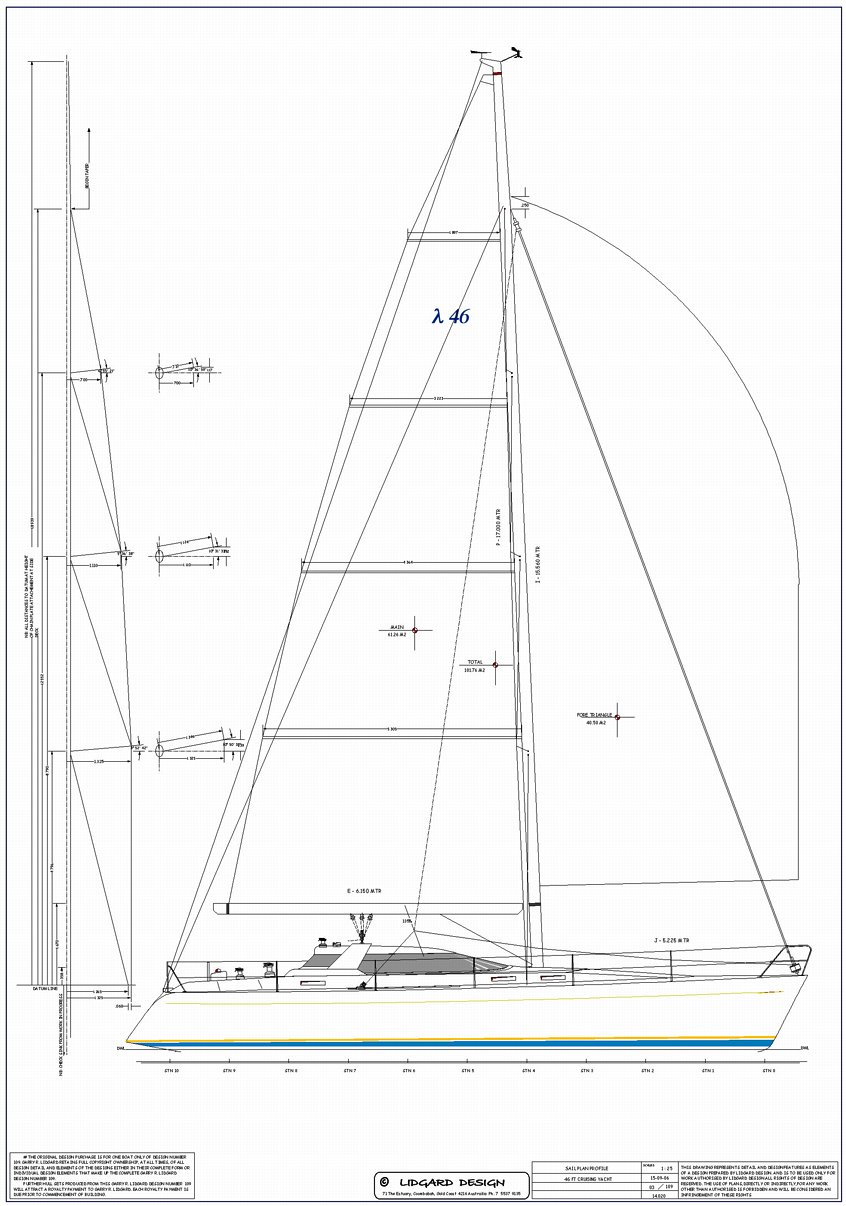

Sail Plan ................. To view larger image Click Here

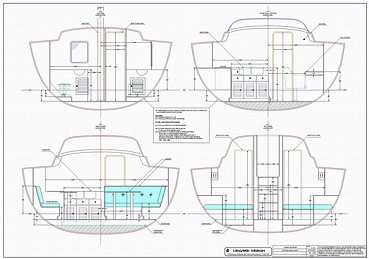

Joiner Sections

Keel structure
