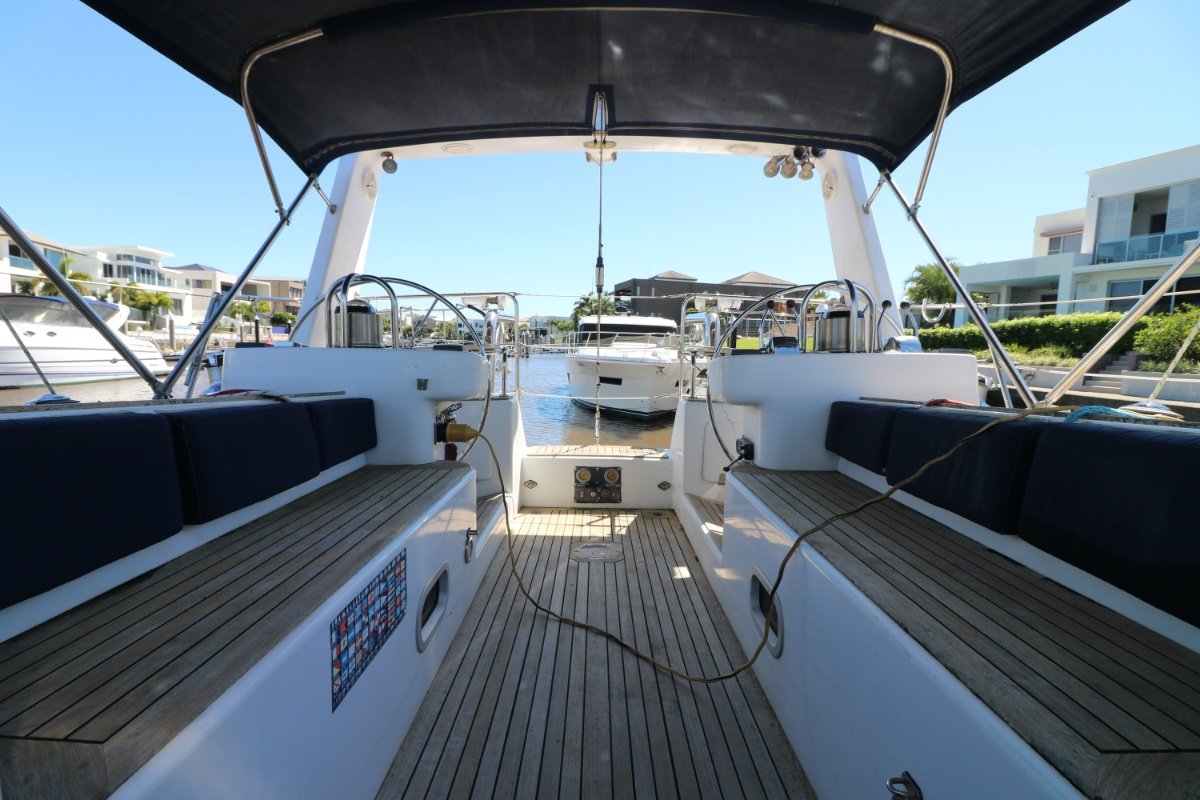

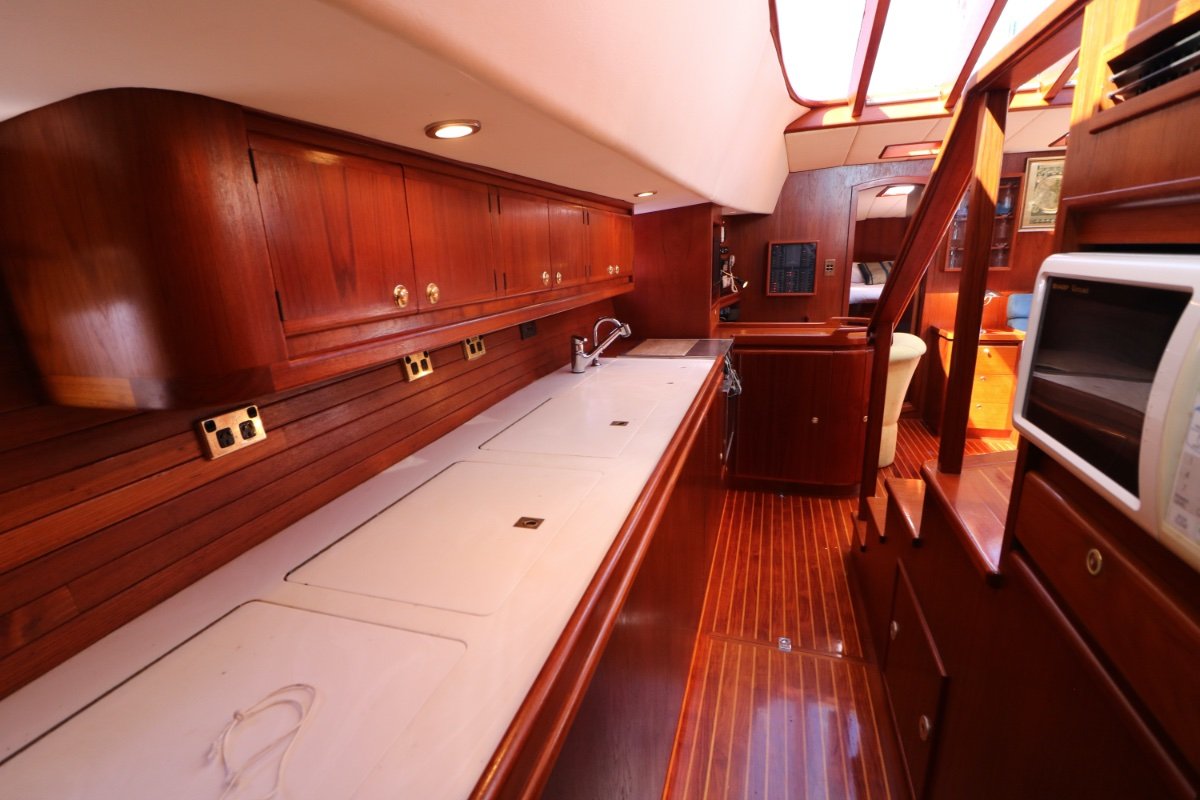

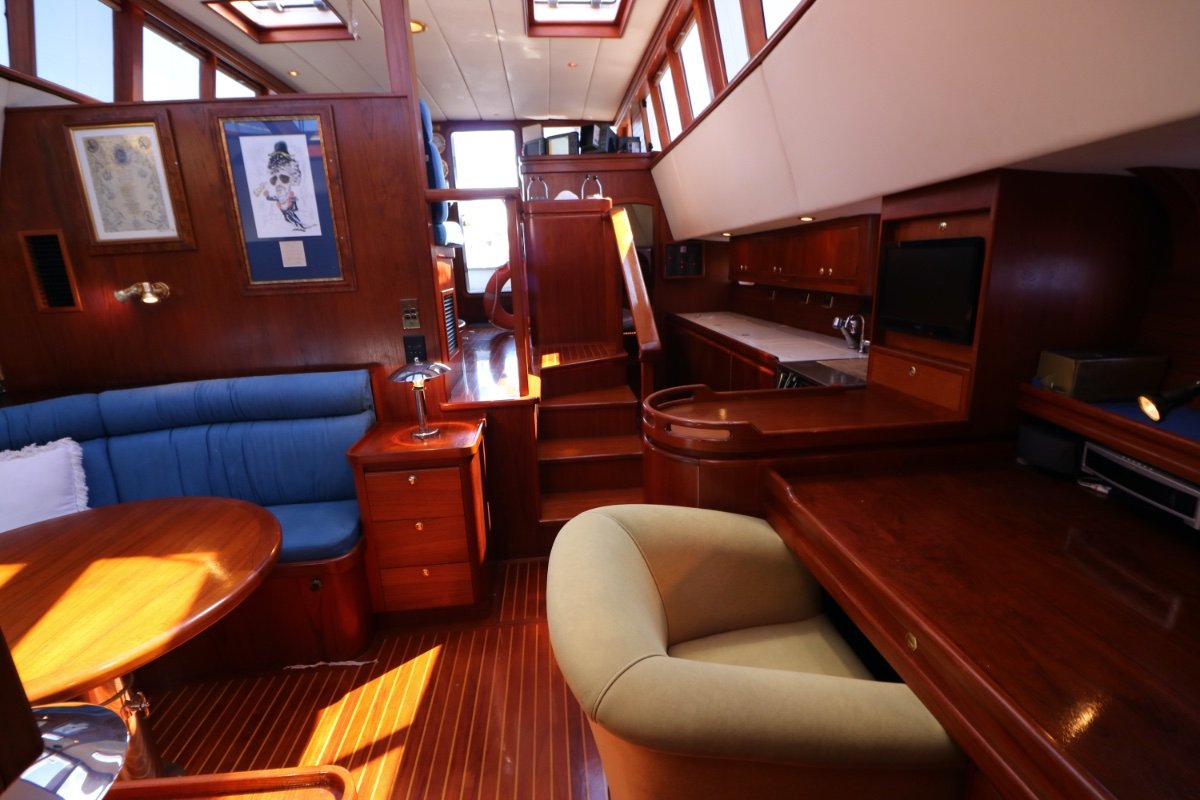

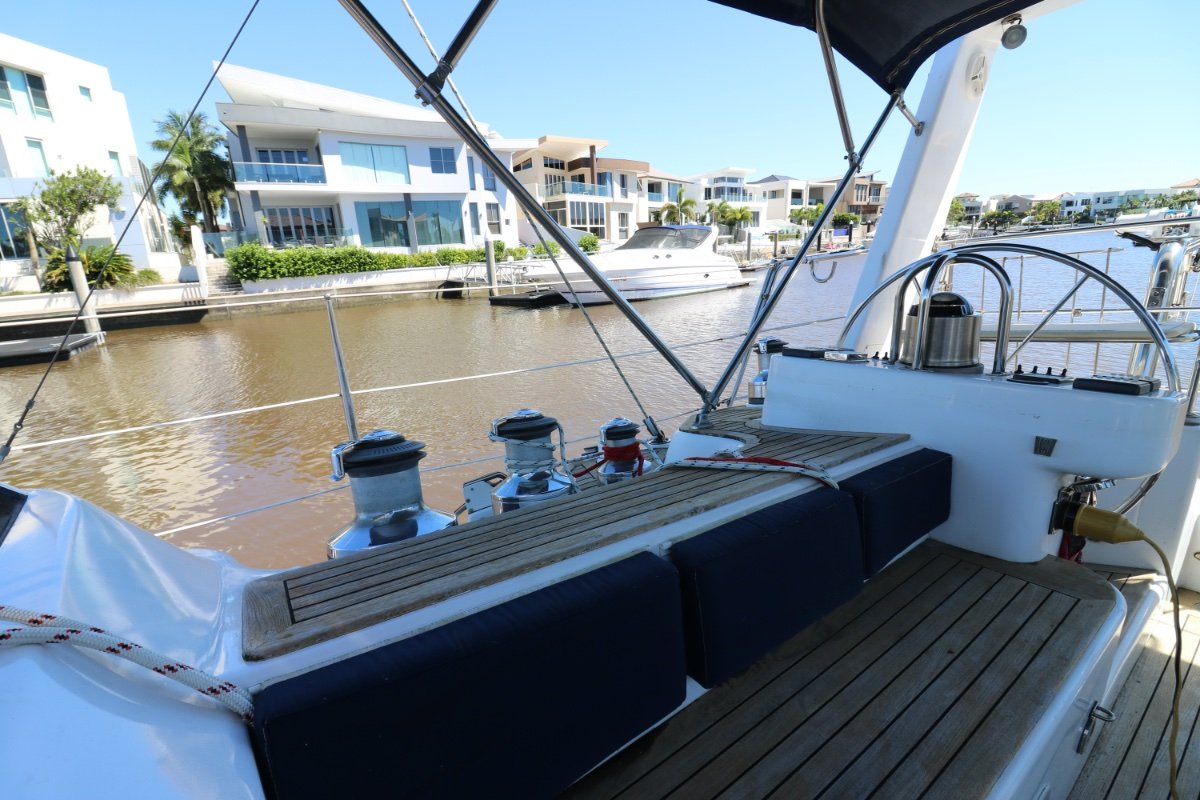

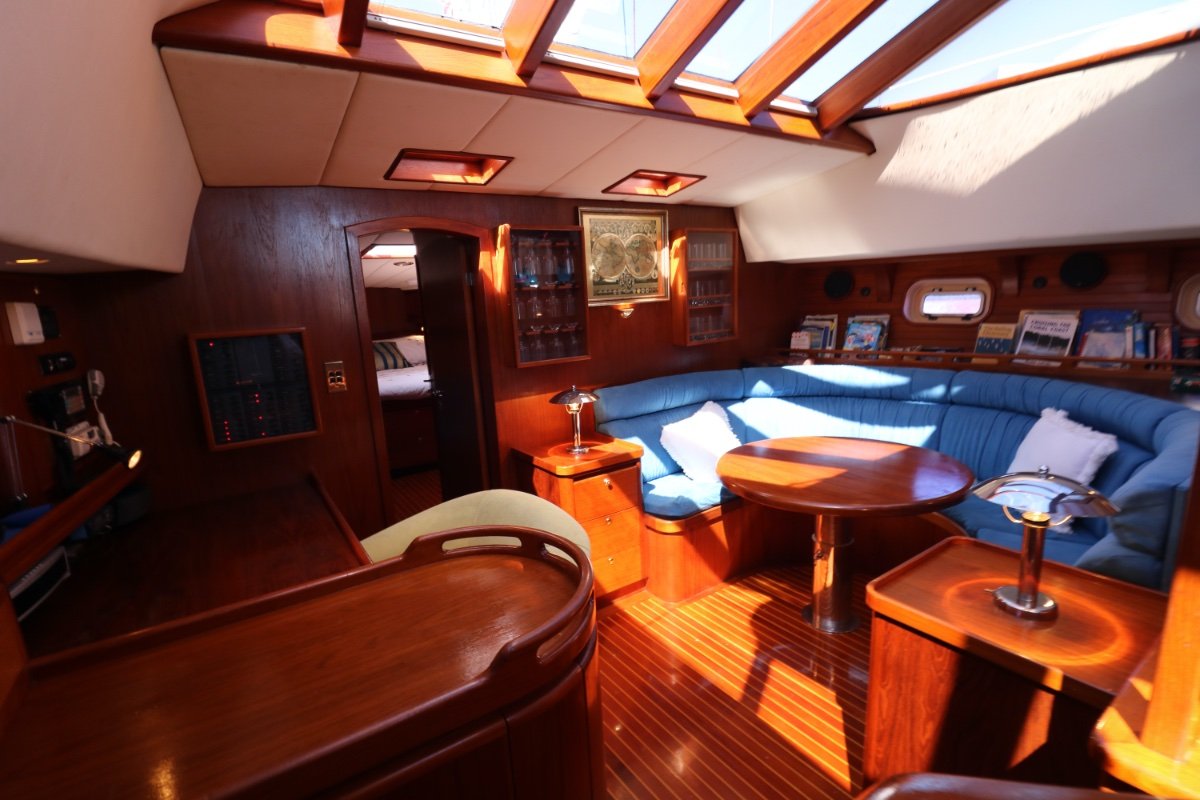

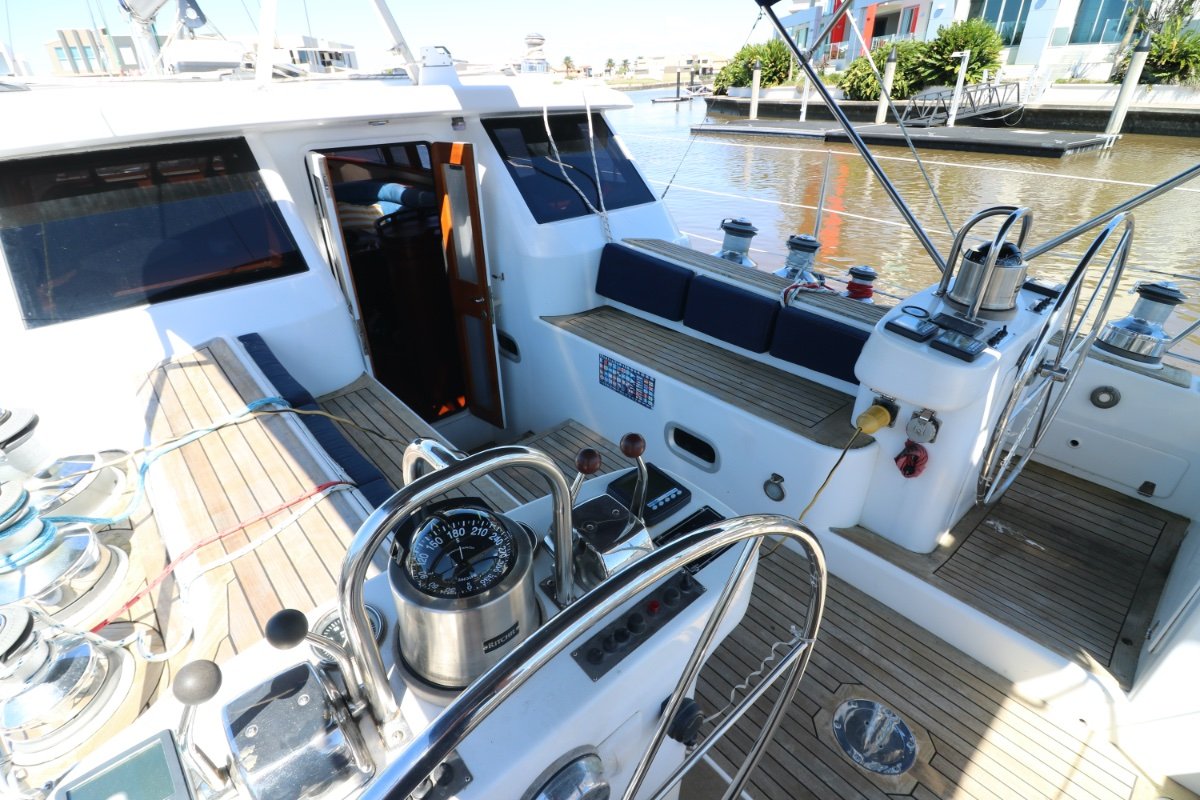

Lidgard Yacht Design 56ft Monohull Motor Sailor
Lidgard Yacht Design 56ft Cruising Monohull Yacht




Back to Stock Plans Page.

Send us an email

LYD Contact Details

LYD directory

Home

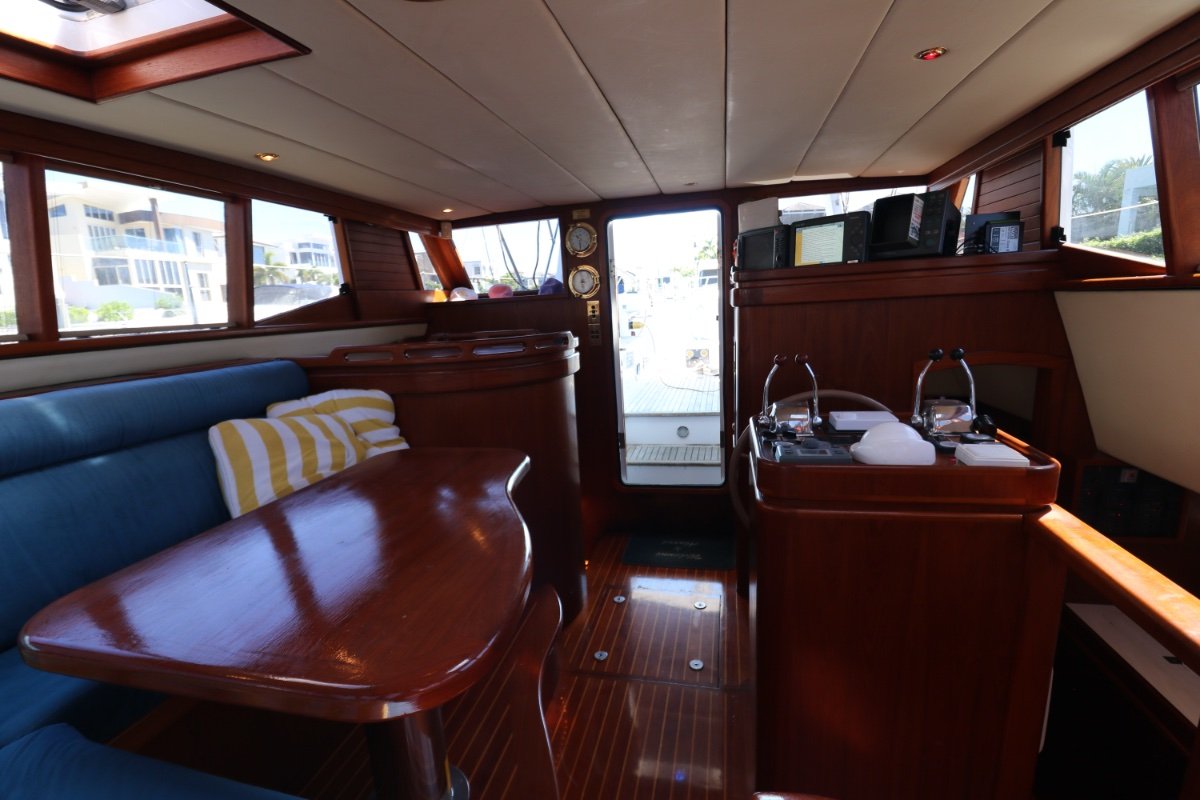

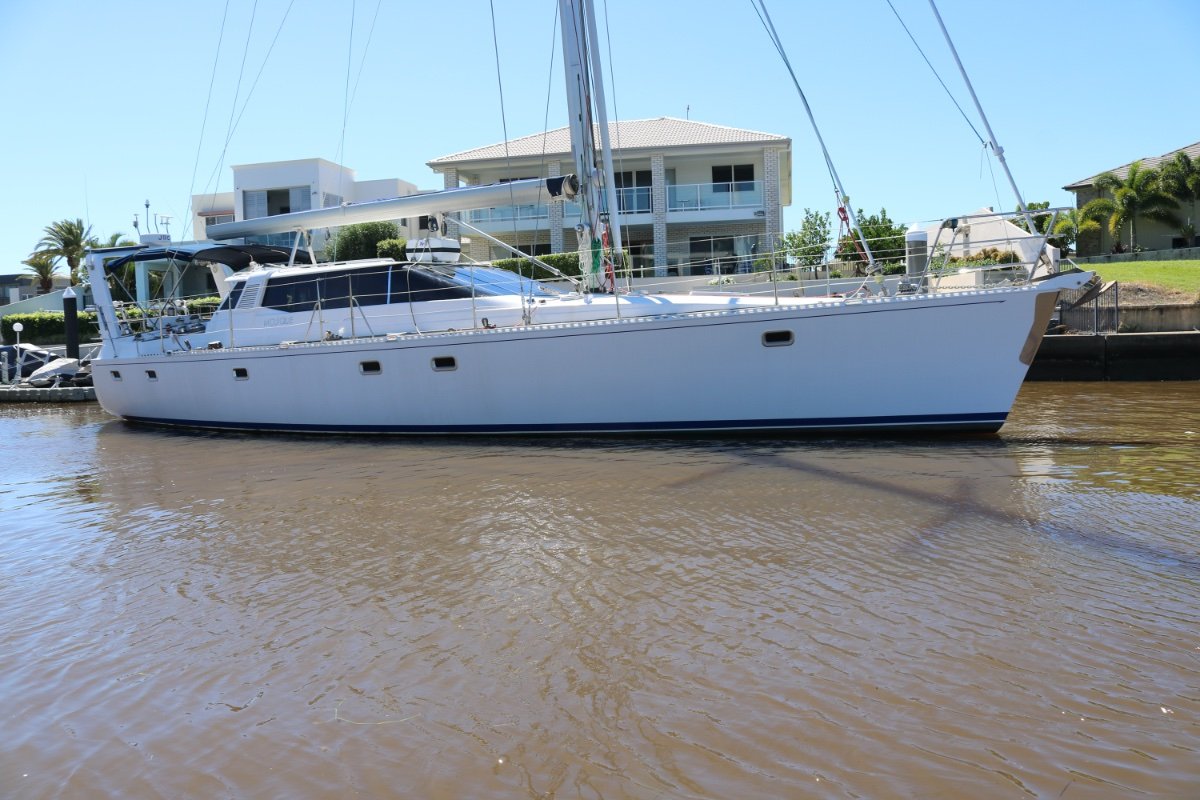

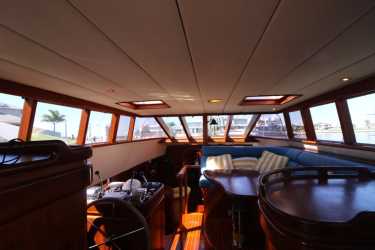

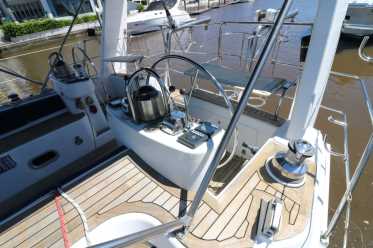

The images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.


If you wish to order a set of study plans for this design.
Australian $26.00 per set.

Click pay now button below.

56 ft Monohull Cruiser Racer
Study Plan drawing list


01 General arrangement
02 Deck plan & outboard profile
03 Sail plan
04 Joiner sections
05 Structural arrangement

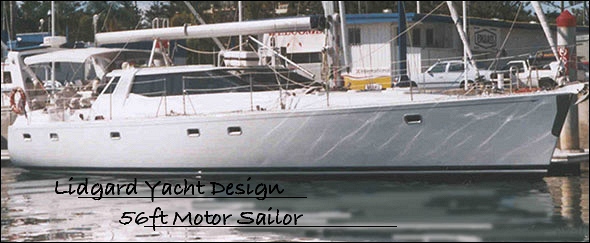

56 ft Monohull Motor Sailor
Principal Dimensions


Loa / Lod ......................... 17.200 Mtr
Dwl ......................... 15.450 Mtr
Beam Max ......................... 5.030 Mtr
Beam Wl ......................... 4.200 Mtr
Draft Fixed Keel ......................... 2.200 Mtr
Centre Board Option
Draft Board Down ....................Na
Main Sail ........................86.5 M2
Fore Triangle ......................... 60.5 M2
Total Sa ........................147 M2
Mast Above Deck .........................22.000 Mtr
Prismatic Coefficient = V2/ (Maxa*L) .............. 0.54
Sinkage Kg Per Cm = (B1*Spacing/3)*10.25 .............. 434 Kg
Righting Moment At 1 Degree Kgm = ............. 736 Kg
Displacement Volume Below Dwl ......................... 18000kg
Ballast Bulb & Fin ........................ 6000kg
Yanmar ......................... 110 Hp Each
Construction
Hull & Deck Shells ........................ Epoxy Foam Cored - Glass Or Cedar Composite Internals ........................ Composite - Plywood - Timber - Glass


Construction for this design is from epoxy-stitched glass-foam & balsa cored composites for both shells and internals. Full size plots are supplied for Hull and Deck shell building frames plus full size plots for all appendages are supplied. 2 sets of drawings are supplied with a design purchase. These are in the form of computer generated scaled cad drawings plotted on B1 size media.










Sail Plan.

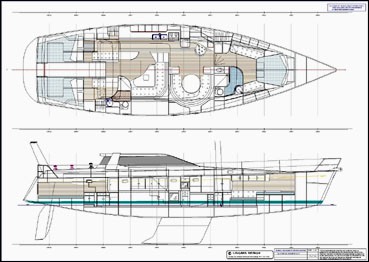

General arrangement plan.

Joiner sections.

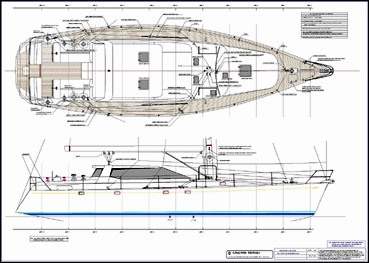

Deck plan.

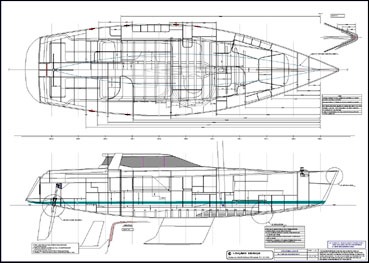

Structural layout.
