Lidgard Yacht Design 64ft flybridge sports fishing boat
Lidgard Yacht Design 64ft Mono-hull hardtop sports fisher




At Lidgard Yacht Design we can prepare a power boat design for you to whatever aesthetics or vessel type you may desire.

Back to Study plans page

Back to Mono Hull Power Boats page

Click here to send us an email

LYD Contact Details

LYD directory

Home

The cad images shown on this page are generally those supplied with the study plan package for this design. Each drawing as shown is a high quality coloured ink plot on A3 size media. As applicable air postage is inclusive in the charged amount and within Australia the amount charged is GST inclusive.

If you wish to order a set of study plans for the 64 ft Sports Fishing Boat design.
Australian $30.00 per set.

Click pay now button below.


Study Plan drawing list
01 General arrangement
02 Outboard profile & deck plan
03 Midship joiner sections
04 Lower structural layout plan
05 Engine room section
06 Flybridge layouts

52ft Sports Fishing Boat
Principal Dimensions


L.o.a. ............................. 19.140 m
L.w.l. ............................. 16.420 m
Beam (overall) ..................... 6.585 m
Draft ............................. 1.290 m
Displacement. (Volume available below Dwl.)
............................. 35390 kg

Example Performance @ 33,000 kg Displacement
25 knots 2 * 900 hp

Fuel Capacity 1 * 6550 Litres
Water Capacity 1 * 1150 Litres

Construction Medium :
Glass - Foam Cored - Composites

Custom One Off construction for this design is from epoxy resin system, stitched glass, foam cored composites for both shells and internals. Or alternatively for Production boat construction from Polyester resin system, stitched glass, c-s-m, foam and balsa cored composites for both shells and internals. Full size cut files are supplied for both hull and deck shell building frames. 2 sets of drawings are supplied with a design purchase, These are in the form of computer generated scaled cad drawings plotted on B1 size media.

Construction drawing list

1 General Arrangement
2 Structural Plan (above sole)
3 Structural Plan (below sole)
4 Crew Cabin Structure
5 Outboard Profile & Deck Plan
6 Structural Profile & Body Plan
7 Plumbing Schematic
8 Hull Strakes
10 Bhd @ +0.230 m
11 Joiner Section @ stat 1
12 Bhd @ -3.200 m
13 Bhd @ -4.070 m
14 Joiner Section @ stat 3
15 Bhd @ -6.750 m
16 Joiner Section @ stat 5
17 Engine room section
18 Joiner Section @ stat 7
19 Main bhd @ -12.385
20 Joiner Section @ stat 8
21 Joiner section @ stat 9
22 Transom
30 Flybridge
31 Fuel tank construction
32 Water tank construction
40 Hull mould constuction
41 Deckl mould constuction
42 Flybridge mould constuction
43 Hull frames (plan/profile)
44 Hull frames (body plan)
45 Deck frames (plan/profile)
46 Deck frames (body plan)
47 Flybridge frames (plan/profile)
48 Flybridge frames (body plan)







To view larger image Click Here















Back to Study plans page

Back to Mono Hull Power Boats page

Click here to send us an email

LYD Contact Details

LYD directory

Home

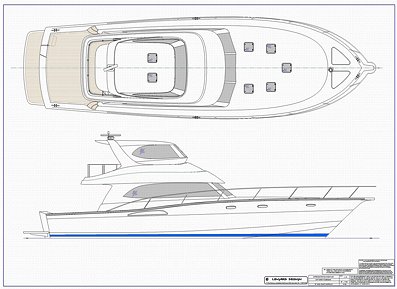

Sports Fishing Boat outboard profile and deck plan
with enclosed flybridge.

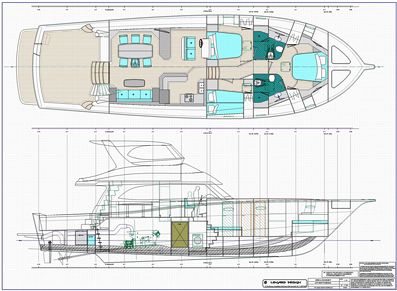

Sports Fishing Boat Inboard Profile and General arrangement
with enclosed flybridge.


Sports Fishing Boat enclosed flybridge layout

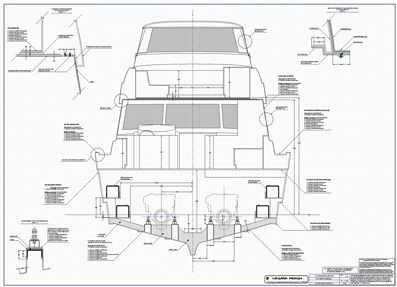

Sports Fishing Boat Engine Room Structural Section.
